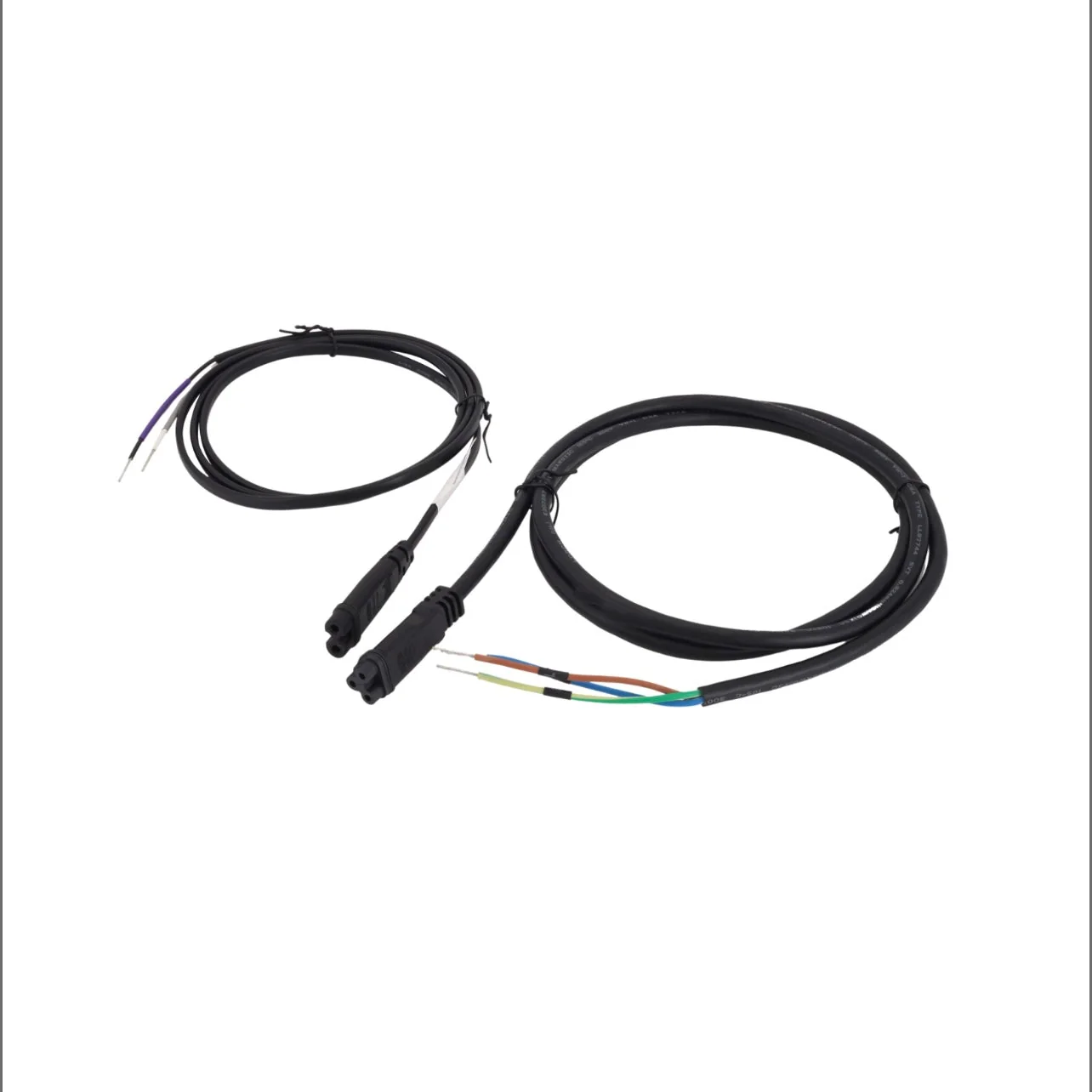

Please take note: The electrical connections for this pump have been altered from all preceding models. It is crucial to REMOVE ALL EXISTING WIRING. The package now includes NEW power and alarm cables. It's mandatory to use these new wires and ensure they are grounded during the installation of this new pump. Adhere to the updated installation guidelines provided.

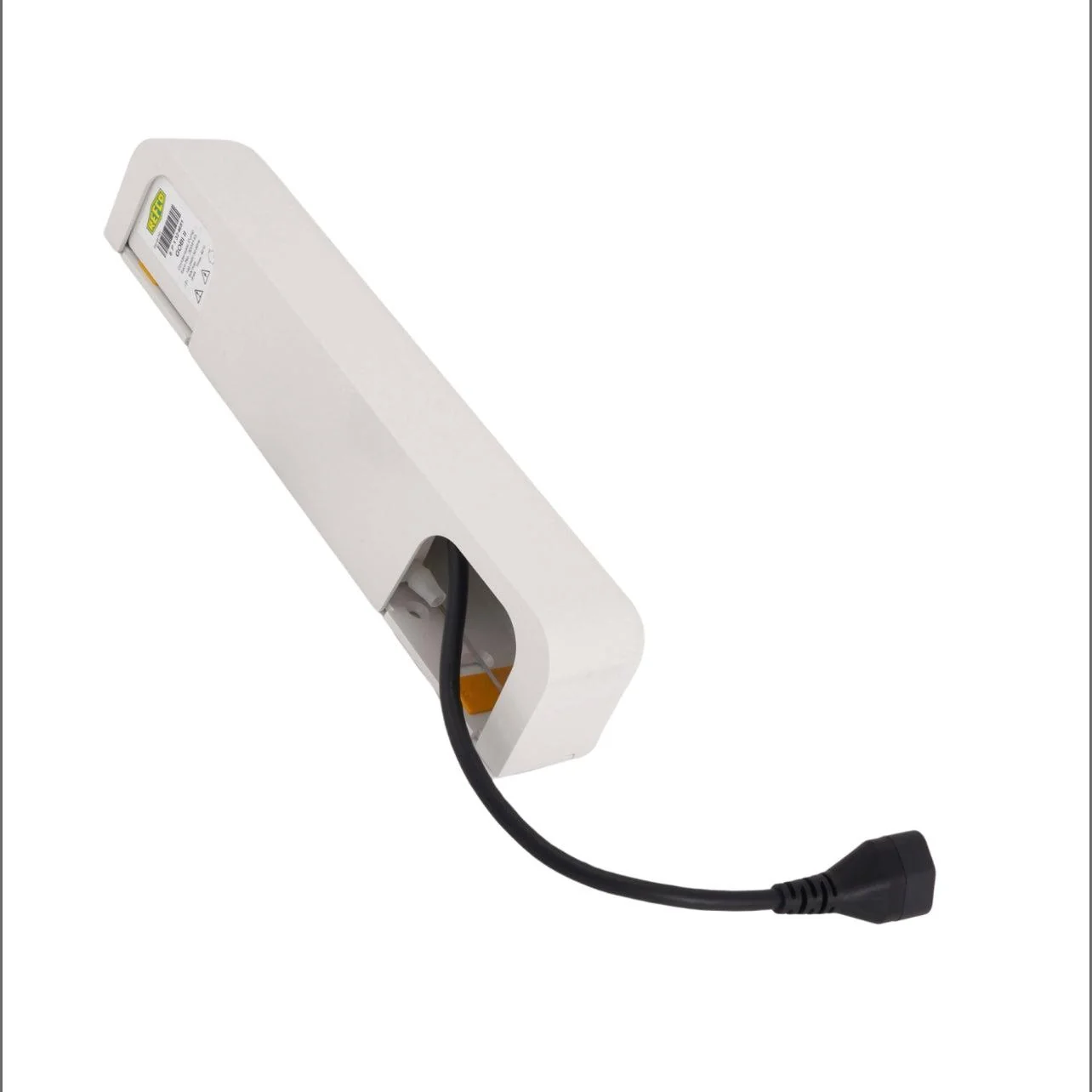

Introducing the entirely re-engineered Gobi II condensate pump, which keeps all the favorable features you appreciate while enhancing every other aspect. The Gobi II boasts a vast flow capacity, suitable for operations ranging from 6,000 Btu/H (1.75kW) to 120,000 Btu/H (35 kW). With its digital water detection, universal voltage adaptability, and user-adjustable flow, it stands as the most robust, quietest condensate pump mounted under air conditioners available today.

Technical Details:

• Maximum Flow: 11 GPH (42 l/h)
• Maximum Suction: Self-priming up to 10 ft. (3 m)
• Maximum Discharge Head: 65.60 ft. (20 m)
• Noise Level: 20dBA at a distance of 3 ft. (1 m) / 19dBA as per 1 EN ISO 3744:2010
• Wireless Connectivity: Optional remote wireless access via smartphone
• Voltage: Auto-sensing universal power input from 100 to 240 VAC at 50/60 Hz
• Power Consumption: 8 watts at peak operation at 110V
• Alarm Relay: 10 Amps NO/NC contacts, integrated with a replaceable HRC 10A fuse of dimensions 5 × 20 mm
• Weight: 1.3 Lbs. (600g)

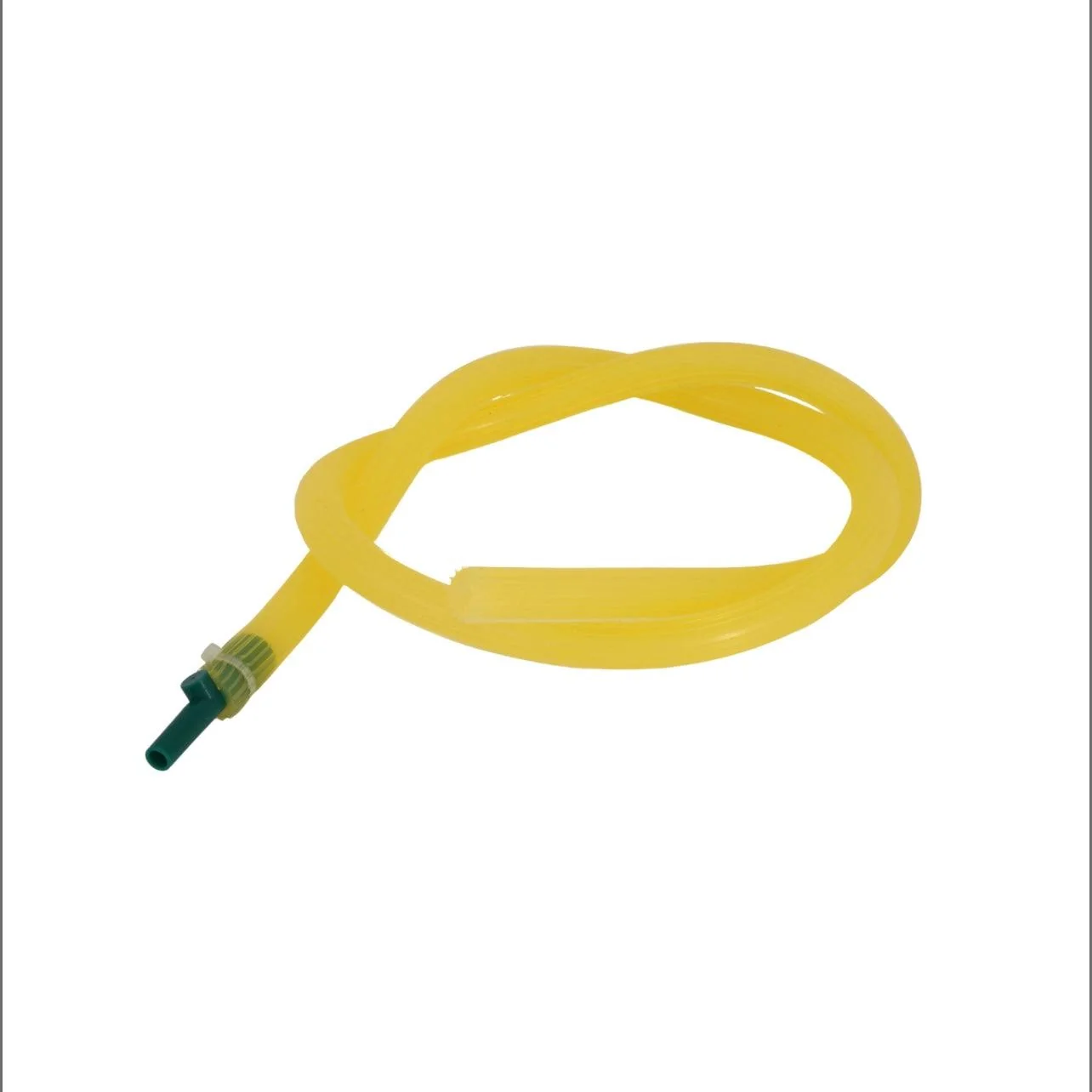

• Discharge Tubing: 1/4“ I.D. (6.25 mm) × 3.3 ft. (1 m)
• Protection Level: Class II double insulation, Fully encapsulated, IP-44 rated
• Operating Temperature: Ambient 37.5°F to 104°F (3°C to 40°C) / Water 41°F to 77°F (5°C to 25°C)
• Compliance: Meets UL:778 standards and is certified to CSA C22.2#68
